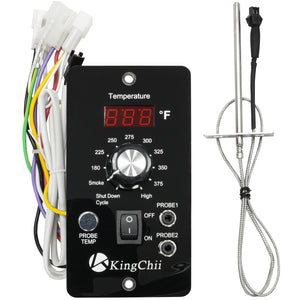

Replacement PID Digital Pro Control Panel and RTD Temperature Probe Sensor - Fits for KingChii HWPG 456A/B/C/D/E Wood Pellet Grills and Smoker
Shop with confidence
Free Delivery in 5–8 Days
3-Year Warranty
30-Day Returns
Lifetime Customer Service
Description
Compatible with KingChii HWPG 456A/B/C/D/E wood pellet grills, the RTD temperature probe is made of durable 304 stainless steel with excellent heat resistance and waterproof performance for accurate temperature sensing. The control panel features PID intelligent temperature control with a stable range of 180–420°F, a high-clear LED display visible in direct sunlight, and dual meat probe support. Built-in error codes help quickly identify sensor, low-temperature, or overheating issues, ensuring safe and reliable grill operation.
For RTD
【COMPATIBLE】: RTD temp sensor probe compatible with KingChii HWPG 456A/B/C/D/E Wood Pellet Grills.【TEMPERATURE PROBE SPECIFICATIONS】: RTD temperature sensing probe with a 3.5-inch built-in mesh sensor and 17-inch stainless steel cable length. 【QUALITY】: Made of 304 stainless steel, offering excellent machinability, high toughness, and outstanding high- and low-temperature resistance. It also features superior waterproof performance.【RTD TEMPERATURE PROBE】: Equipped with a 3.5-inch built-in mesh sensor, allowing simultaneous monitoring of meat temperature (suitable for smokers and grills) and ambient temperature through a digital controller. Ensures safe control of the cooking process and temperature of various ingredients. 【NOTES】: When installing, neatly secure any excess RTD cable, leaving only the appropriate length, to prevent damage from high heat.
For CONTROL PANEL

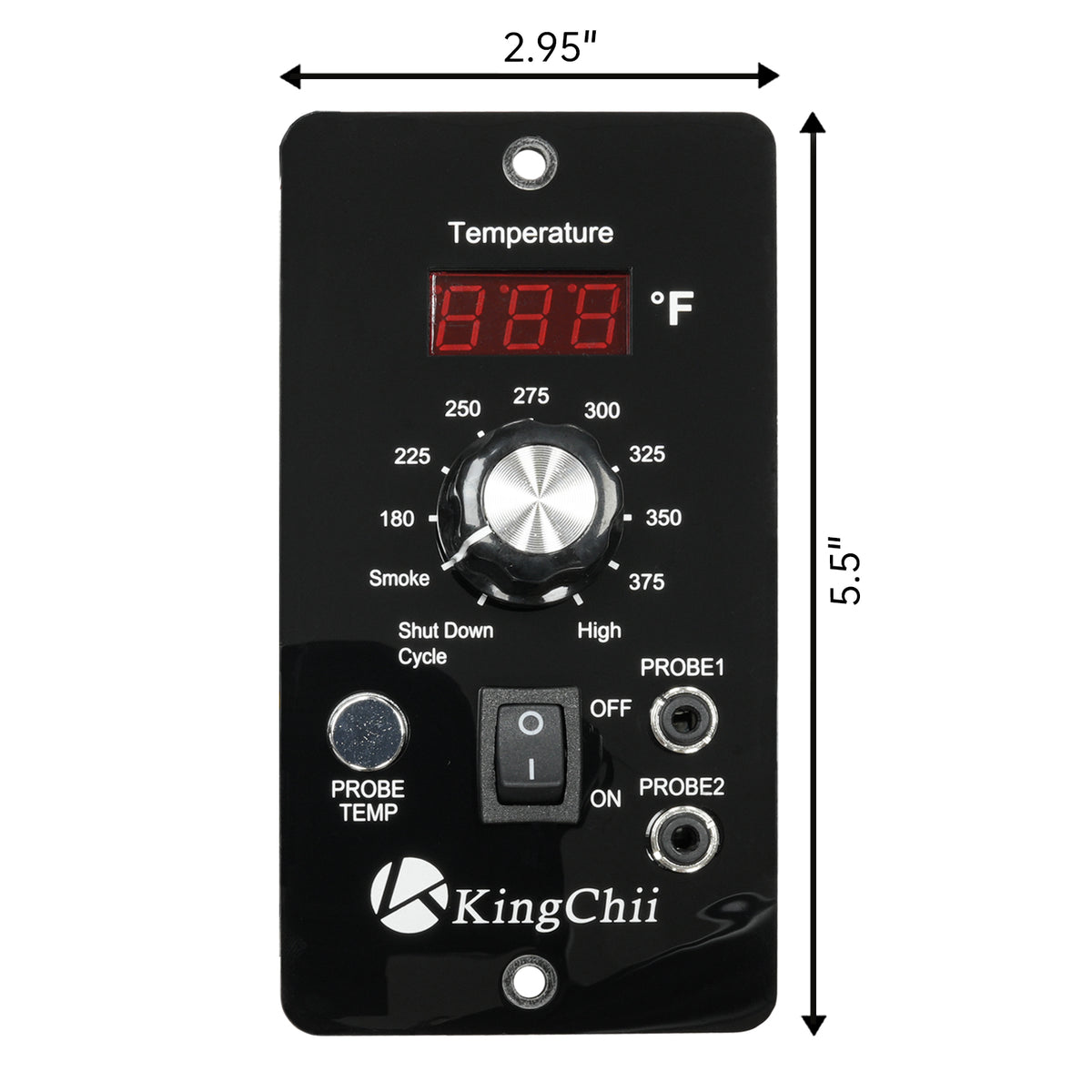

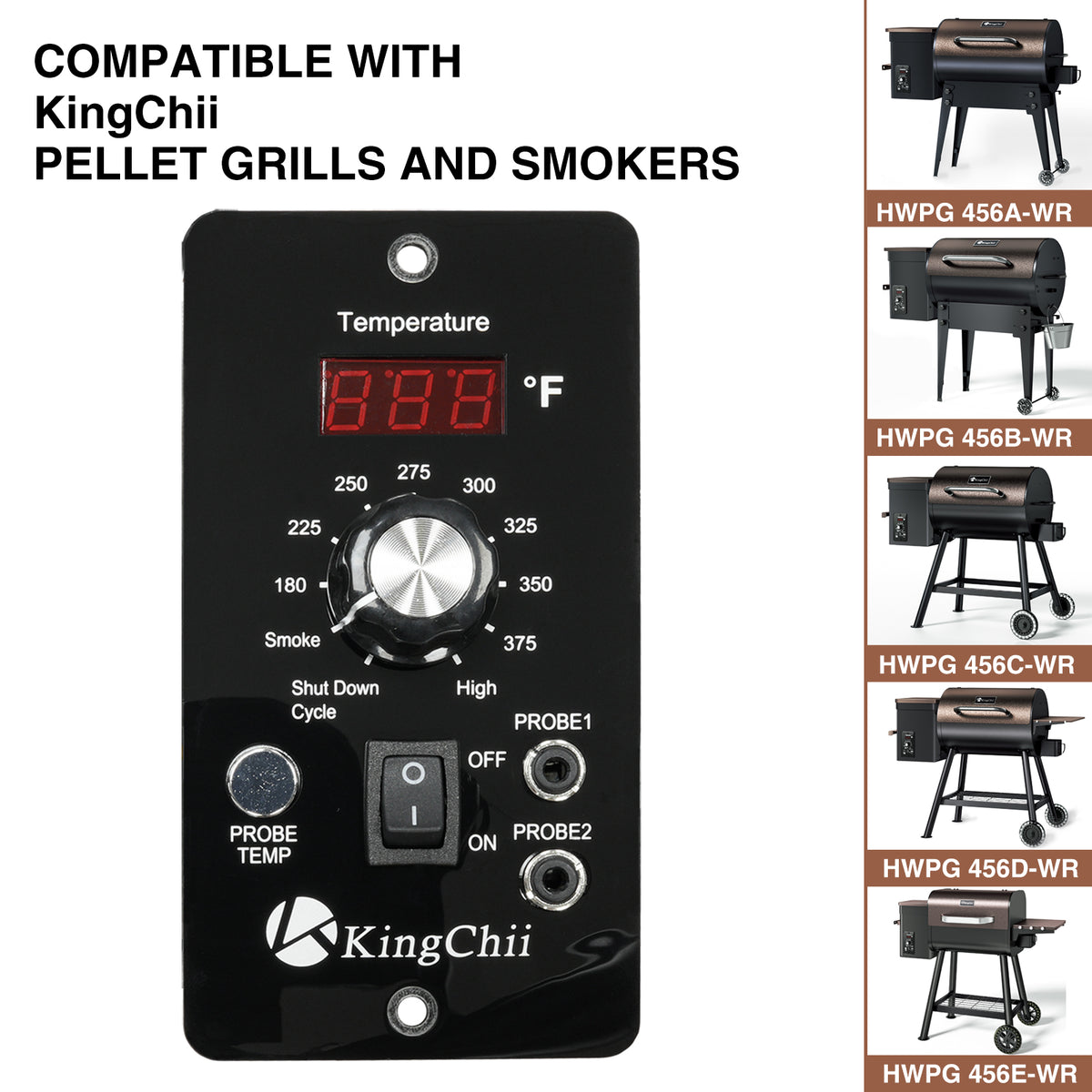

【COMPATIBILITY】Control Panel compatible with KingChii HWPG 456A/B/C/D/E wood pellet grills.
【PID INTELLIGENT TEMPERATURE CONTROL】PID technology maintains stable and precise temperatures during cooking. Temperature range: 180–420°F.
【HIGH-CLEAR LED DISPLAY】Bright LED screen allows easy temperature monitoring, even in direct sunlight.
【ERROR CODE: ErP】Indicates the RTD temperature sensor is not connected. Turn off the grill, check the RTD connection, or replace the sensor if needed.
【ERROR CODE: ErL / ErH】1. ErL: Temperature too low. Check auger motor, igniter, or fan.2. ErH: Grill overheated. Turn off the grill and restart after cooling.
【PROPER SHUTDOWN PROCEDURE】1. Do not immediately turn off the grill switch or set it to OFF. 2. First, move the dial to the "Shut Down Cycle" position, and allow the remaining pellets to burn out completely. 3. Once the fan stops operating, set the switch to the OFF position, and then unplug the grill from the socket.
Compatible with KingChii HWPG 456A/B/C/D/E wood pellet grills, the RTD temperature probe is made of durable 304 stainless steel with excellent heat resistance and waterproof performance for accurate temperature sensing. The control panel features PID intelligent temperature control with a stable range of 180–420°F, a high-clear LED display visible in direct sunlight, and dual meat probe support. Built-in error codes help quickly identify sensor, low-temperature, or overheating issues, ensuring safe and reliable grill operation.
For RTD

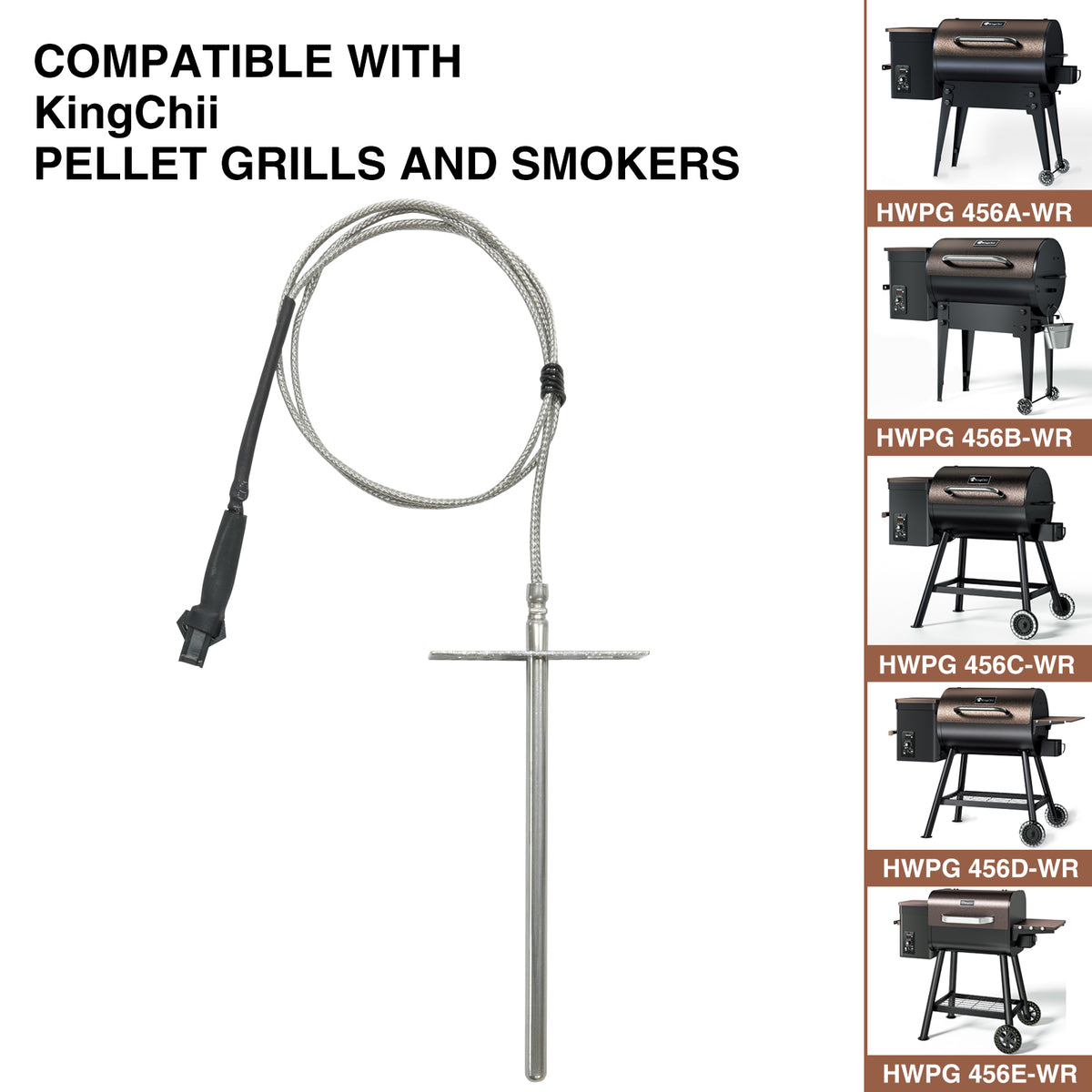

【COMPATIBLE】: RTD temp sensor probe compatible with KingChii HWPG 456A/B/C/D/E Wood Pellet Grills.

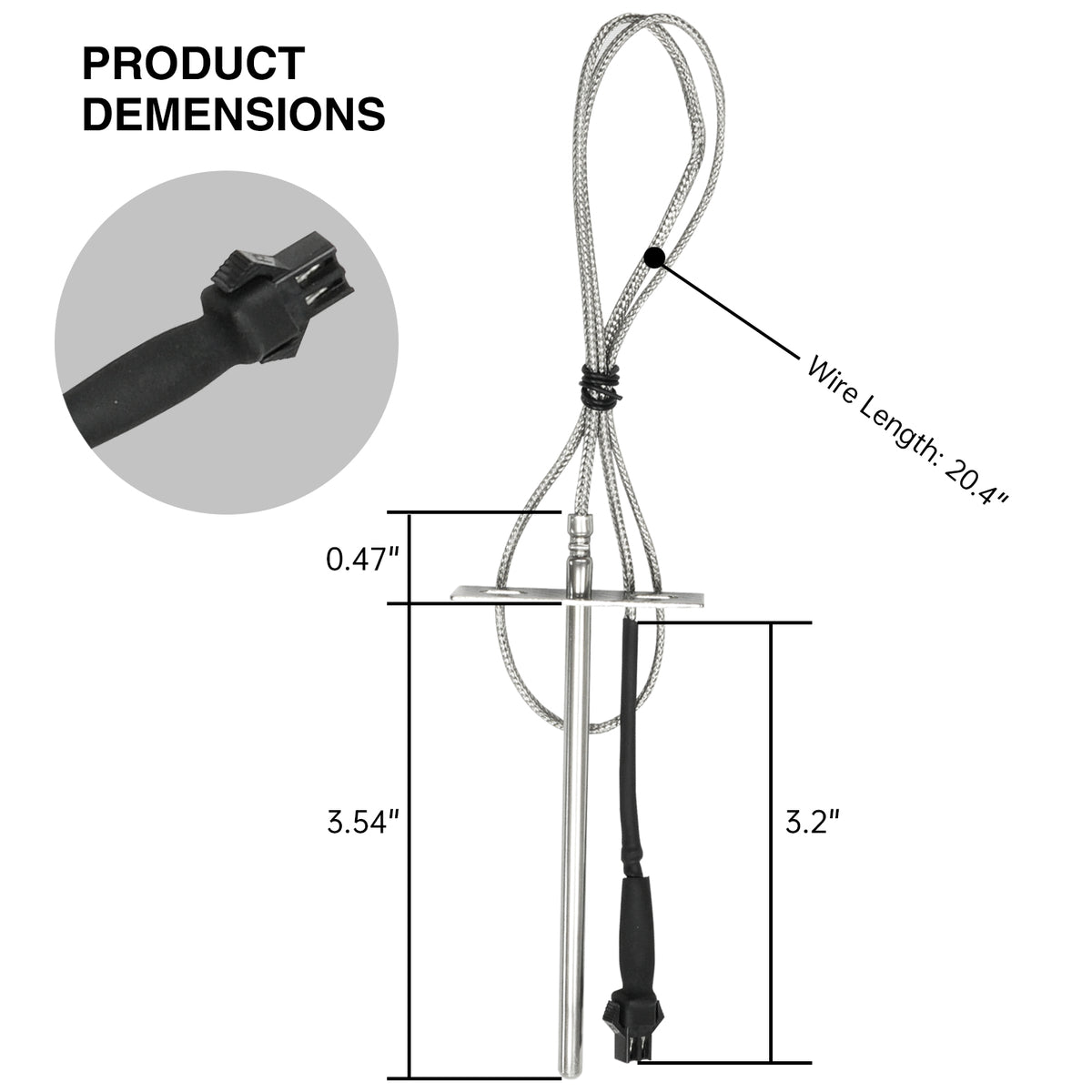

【TEMPERATURE PROBE SPECIFICATIONS】: RTD temperature sensing probe with a 3.5-inch built-in mesh sensor and 17-inch stainless steel cable length.
【QUALITY】: Made of 304 stainless steel, offering excellent machinability, high toughness, and outstanding high- and low-temperature resistance. It also features superior waterproof performance.
【RTD TEMPERATURE PROBE】: Equipped with a 3.5-inch built-in mesh sensor, allowing simultaneous monitoring of meat temperature (suitable for smokers and grills) and ambient temperature through a digital controller. Ensures safe control of the cooking process and temperature of various ingredients.

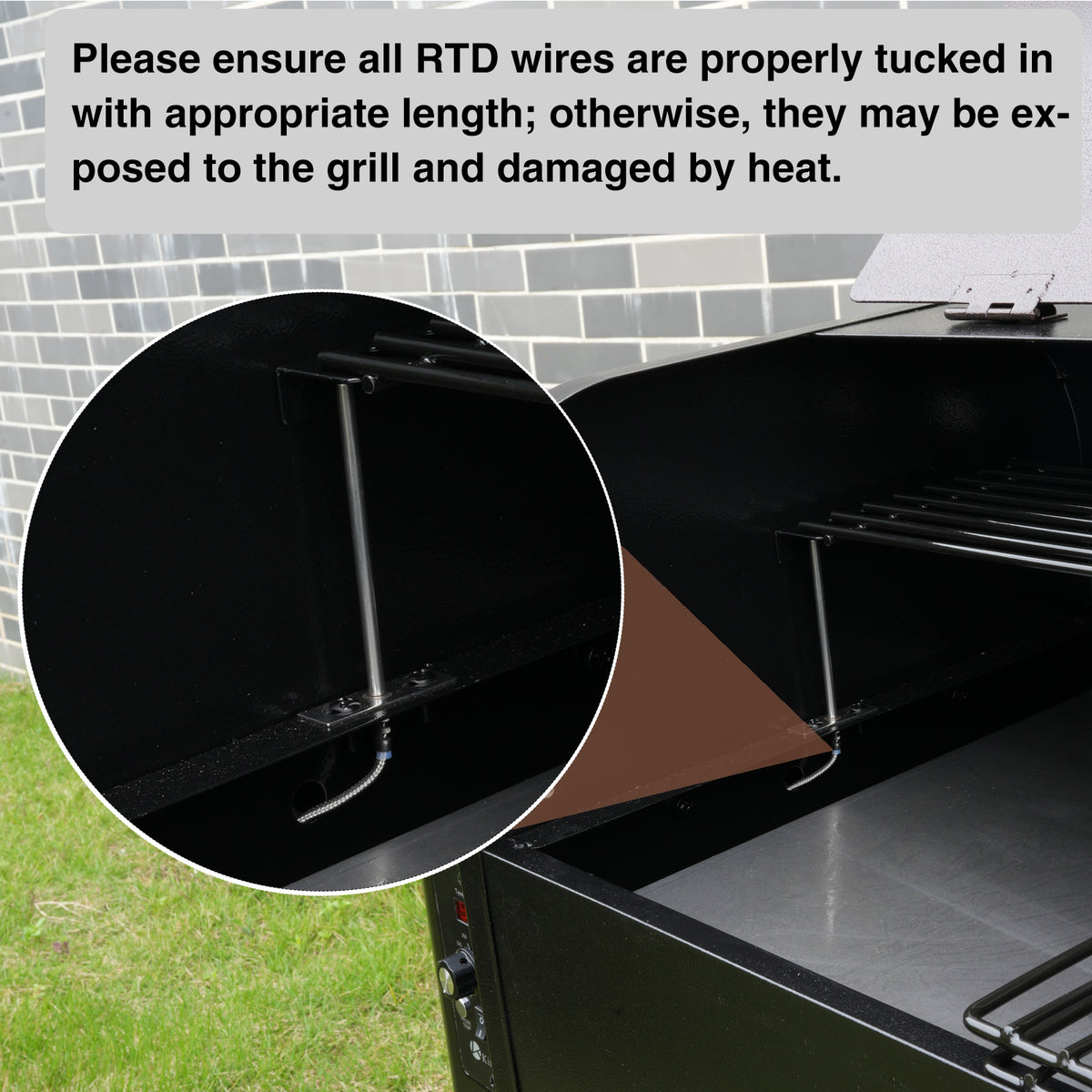

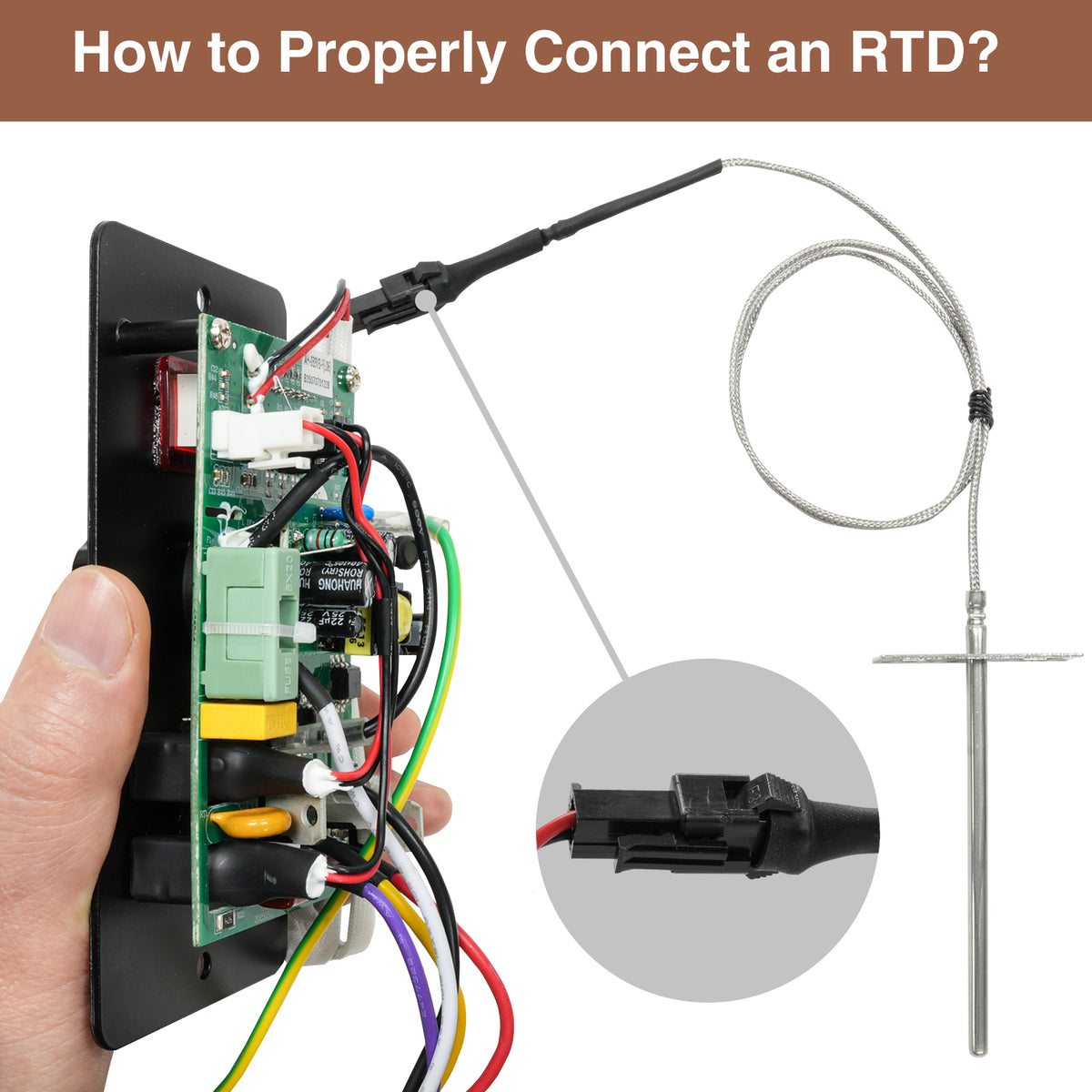

【NOTES】: When installing, neatly secure any excess RTD cable, leaving only the appropriate length, to prevent damage from high heat.
For CONTROL PANEL
【COMPATIBILITY】
Control Panel compatible with KingChii HWPG 456A/B/C/D/E wood pellet grills.
【PID INTELLIGENT TEMPERATURE CONTROL】
PID technology maintains stable and precise temperatures during cooking. Temperature range: 180–420°F.
【HIGH-CLEAR LED DISPLAY】
Bright LED screen allows easy temperature monitoring, even in direct sunlight.

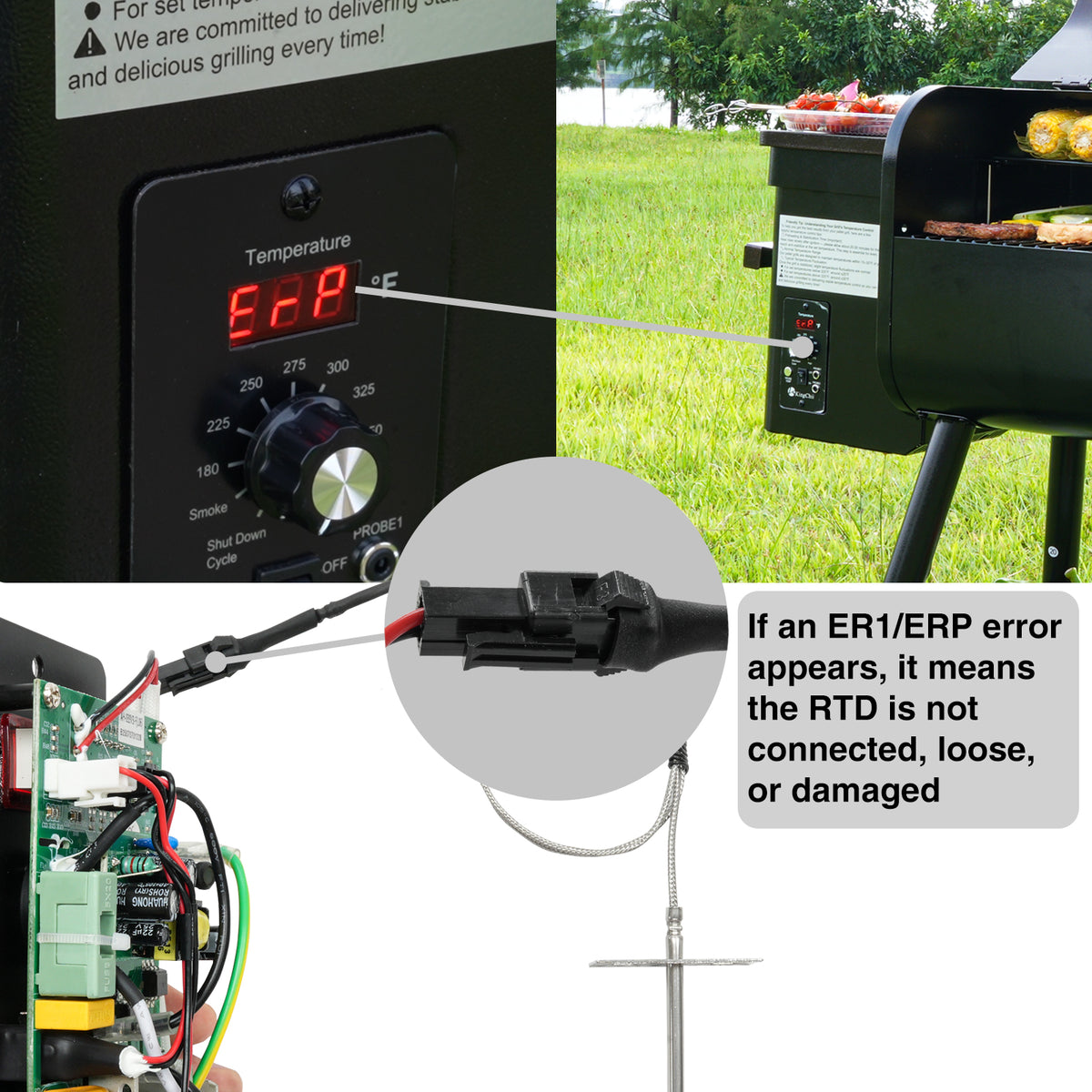

【ERROR CODE: ErP】
Indicates the RTD temperature sensor is not connected. Turn off the grill, check the RTD connection, or replace the sensor if needed.
【ERROR CODE: ErL / ErH】

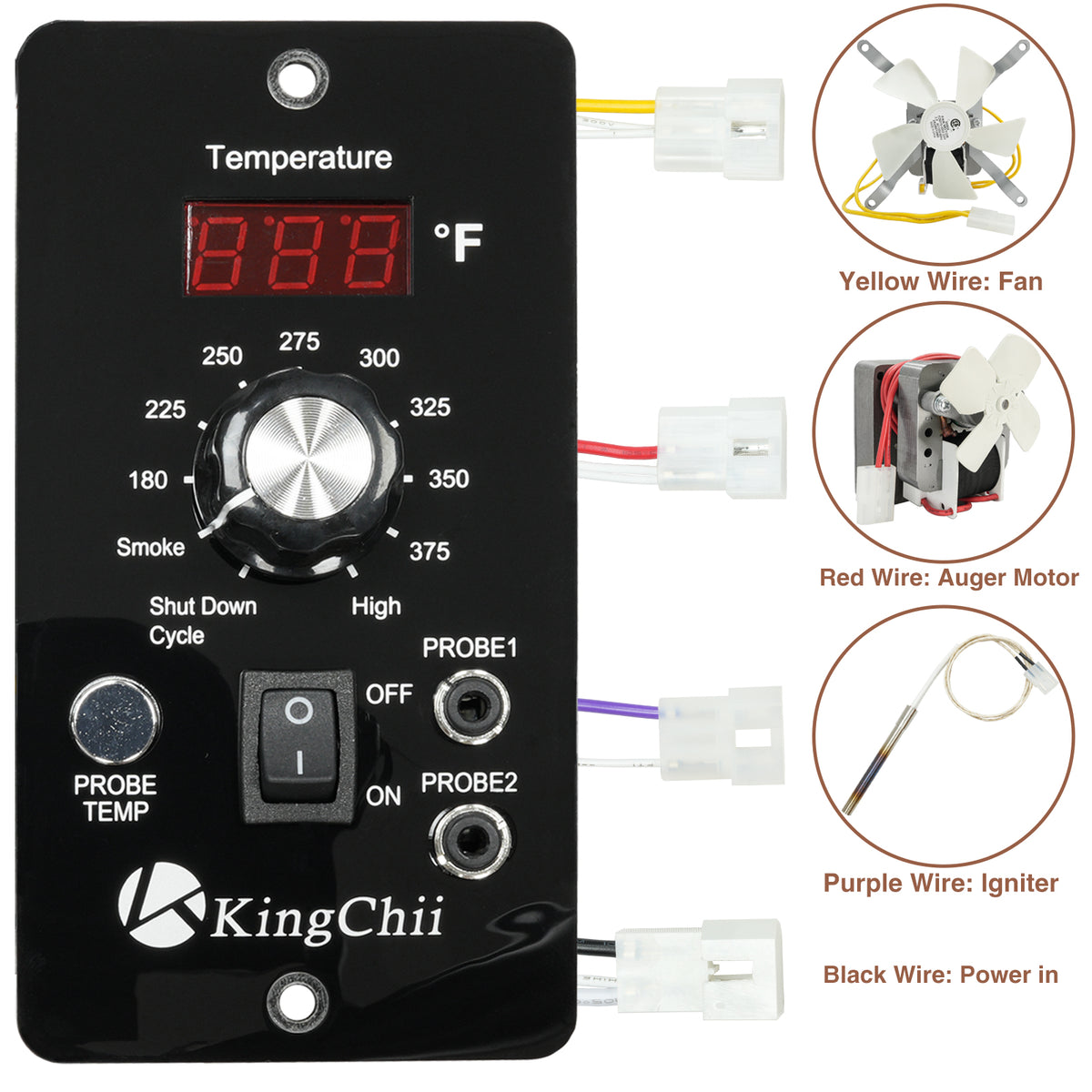

1. ErL: Temperature too low. Check auger motor, igniter, or fan.
2. ErH: Grill overheated. Turn off the grill and restart after cooling.

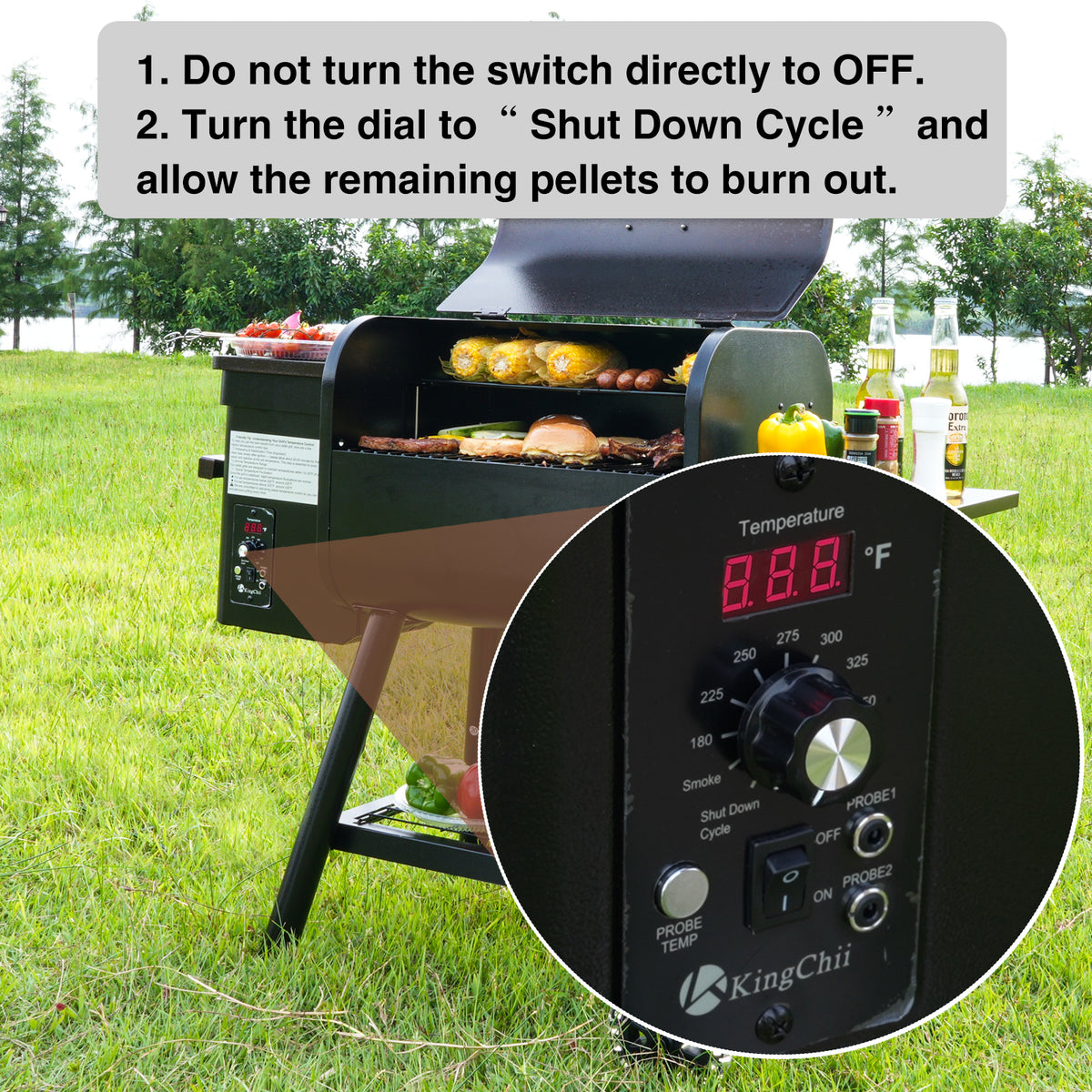

【PROPER SHUTDOWN PROCEDURE】
1. Do not immediately turn off the grill switch or set it to OFF.
2. First, move the dial to the "Shut Down Cycle" position, and allow the remaining pellets to burn out completely.
3. Once the fan stops operating, set the switch to the OFF position, and then unplug the grill from the socket.
Replacement PID Digital Pro Control Panel and RTD Temperature Probe Sensor - Fits for KingChii HWPG 456A/B/C/D/E Wood Pellet Grills and Smoker
